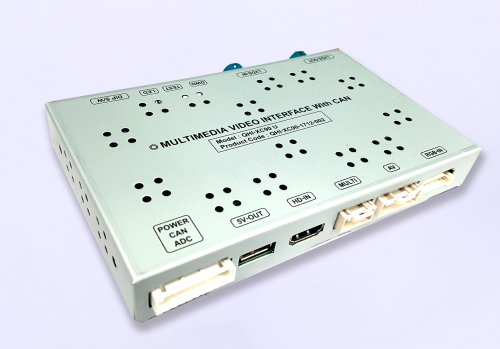

HDMI Video Interface for Vovlo XC90, S90 2017 with Parking Guide line
  • Model:

    QHI-XC90

  • Features:

    HDMI input*2, RGB input*1 AV input*1, Rear input*1

  • Resolution:

  • Compatible car:

    VOLVO XC90, S90 2017~

Inquiry

  Able to output high resolution video via HDMI input

 Control external videos sources (DVD, DTV) via Multi Media Touch

 Adjust external videos screen position

 Check the improved Screen Display (User Friendly Interface)

 Switch modes via original OEM button

 Supply power to connect rear view camera (Back up camera)

 Assist your parking via Dynamic PAS(Parking Assistance System) moving parking line according movement of steering wheel\


Compatibility


Brand

Model

Model years

System

From

To

VOLVO

S90, XC90

2017

Soldering CAN Wires

PLUG AND PLAY

1. Car Compatibility : VOLVO XC90, S90



2. Components : Interface* 1ea, Sub-board*1ea


3. Multimedia interface Input/output spec

   Input : HDMI*2, Analog RGB*1, A/V*1, CVBS(Rear view Camera)*1, CVBS(Front camera)*1

   Output : To LCD*1



4. Power spec

   Input power : 8VDC ~ 18VDC
   Consumption : 5WATT


5. Switch input mode

■ External video sources  skip function : able to control input videos on and off via DIP switches.
■ Able to switch videos via the remote, button switch, and original buttons.
■ Able to detect the rear view camera (back up camera) via Lamp or CAN.
